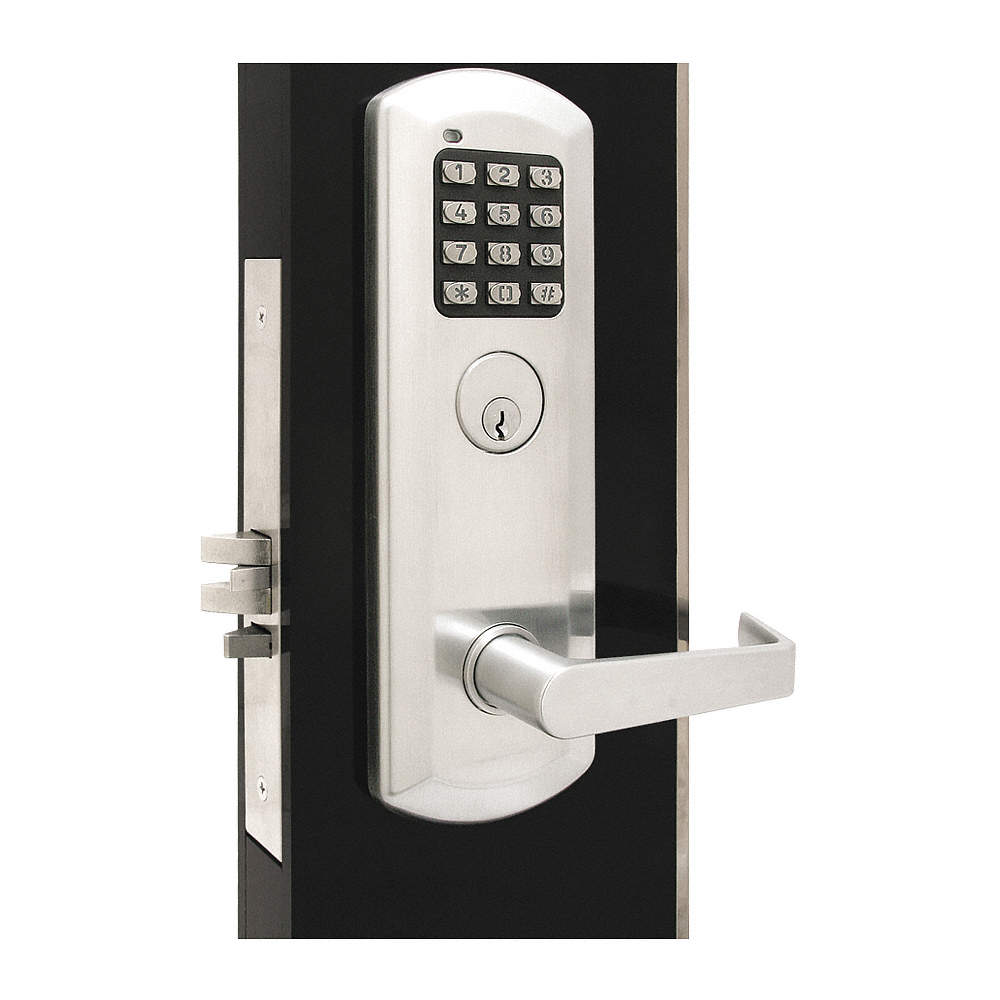

TOWNSTEEL - Standalone heavy duty mortise lockset for greater
security ANSI grade-1 keypad Digital Door Lock - Autolock feature.

Model: XME-2020 |

One Year Warranty

Price: Qr.2500/-   [Qty:10 InStock]


Suitable for: wood steel aluminum indoor outdoor


Qatar civil defence Approved






Product Details:
The XME2020 is a standalone electronic function lock that provides keypad technology integrated with an ANSI Grade 1 heavy duty mortise lockset for greater security. Keypad technology simplifies the management of the system and provides ease of use. Maximum code capacity per lock includes 1 master code, 10 manager codes, 90 user codes and 5 service codes. The XME2020 provides two remote control terminals; one for a fire alarm system and the other for remote release by push button. The XME2020 is quick and easy to program.

Product Electronic specifications:
  • => Application: For classroom lockdown, full indoor and outdoor.
  • => Master code per lock: 1
  • => Master code capacity per lock: 10.
  • => User code capacity per lock : 90.
  • => Manager code capacity per lock: 5.
  • => Communication: Multi-colored LED and Sound.
  • => Power supply: 4AA battery.
  • => Battery life: Up to 2 years
  • => Operating temperature: -31° to 151° F (-35° to 66°C)


Product Mechanical specifications:
  • => Door Thickness: 1-3/4”standard, other upon request.
  • => Backset: 2-3/4”.
  • => Trim: Outside lever rotates up and down in locked and unlocked positions.
  • => Strike: ASA Strike standard, 1-1/4” X 4-7/8”.
  • => Latch bolt: Stainless Steel, split, anti-friction, ¾” projection.
  • => Guard bolt: Stainless Steel.
  • => Faceplate:1-1/8” x 8”.
  • => Escutcheon: Wrought steel or zinc alloy, plated to match finish symbols.
  • => Lever: Forged brass or cast zinc, plated to match finish symbols.
  • => Lever Style: Sentinel (S), Quest (Q) and Gala(G), designer lever styles upon request.
  • => Cylinder:
  • -> 6Pin Schlage "C" Keyway, standard.
  • -> Small Format IC with or without core available, 6 or 7pin core, Best “A” keyway.
  • -> Schlage® Large Format IC less core available.
  • -> Corbin® Large Format IC less core available, for 6pin core.
  • => Keying: KD standard, KA, MK, GMK, GGMK and construction available.
  • => Finish: US26D and US10B stocked, other upon request.
  • => Warranty: 1-year limited for electronic, 5-year limited for finish, 10-year limited for mechanical.

Product Code Compliance:
  • => ANSI/BHMA A156.2: A156.2-2011 Grade 1 certified.
  • => ANSI/BHMA A156.25: Meets or exceeds all applicable requirements.
  • => UL/ULC: UL 10C 3-hour rated.
  • => BAA: Meets guidelines of the Buy American Act.
  • => ADA: Meets requirements of the Americans with Disabilities Act.
  • => RoHS: Meets requirements of EU RoHS Directive 2002/95/EC.
