TOWNSTEEL - Standalone heavy duty cylindrical lockset for greater
security ANSI grade-1 keypad Digital Door Lock - Autolock feature.
Model: XCE-2020 |
One Year Warranty
Price: Qr.2000/- [Qty:3 InStock]
Suitable for:
wood
steel
aluminum
indoor
outdoor
 Qatar civil defence Approved
Product Details:

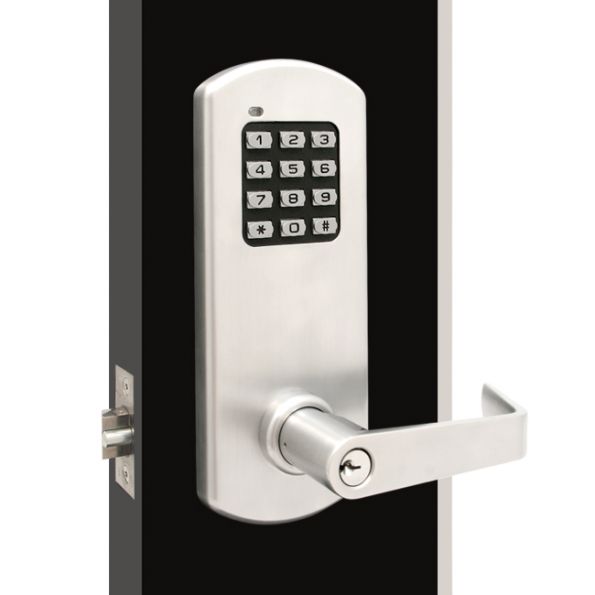

The XCE2020 is a standalone electronic function lock that provides keypad technology integrated with and ANSI Grade 1
heavy duty cylindrical lockset for greater security. Keypad technology simplifies the management of the system and provides ease of use. Maximum code capacity
per lock includes 1 master code, 10 manager codes, 90 user codes and 5 service codes. The XCE2020 provides two remote control terminals; one for a fire alarm
system and the other for remote release by push putton. The XCE2020 is quick and easy to program.
Product Electronic specifications:
- => Application: Full indoor and outdoor.
- => Master code capacity per lock: 1.
- => User code capacity per lock : 90.
-
- => Manager code capacity per lock: 10.
- => Service code capacity per lock: 5
- => Communication: Multi-colored LED and Sound.
- => Power supply: 4AA battery.
- => Battery life: Up to 2 years
- => Operating temperature: -31° to 151° F (-35° to 66°C)
Product Mechanical specifications:
- => Door Thickness: 1-3/4”-2”.
- => Backset: 2-3/4” standard,5”optional.
- => Trim: Outside lever rotates up and down in locked and unlocked positions.
- => Strike: ASA Strike standard, 1-1/4” X 4-7/8”.
- => Latch bolt: Stainless Steel, deadlocking, ½” projection.
- => Faceplate:1-1/8” x 2-1/4”.
- => Escutcheon: Wrought steel or zinc alloy, plated to match finish symbols.
- => Lever: Cast zinc or stainless steel, plated to match finish symbols.
- => Lever Style: Sentinel (S), Quest (Q) and Gala(G).
- => Cylinder:
- -> 6Pin Schlage "C" Keyway, standard.
- -> Small Format IC with or without core available, 6 or 7pin core, Best “A” keyway.
- -> Schlage® Large Format IC less core available.
- -> Corbin® Large Format IC less core available, for 6pin core.
- => Keying: KD standard, KA, MK, GMK, GGMK and construction available.
- => Finish: US26D and US10B stocked, other upon request..
Product Code Compliance:
- => ANSI/BHMA A156.2: A156.2-2011 Grade 1 certified.
- => ANSI/BHMA A156.25: Meets or exceeds all applicable requirements.
- => UL/ULC: UL 10C 3-hour rated.
- => BAA: Meets guidelines of the Buy American Act.
- => ADA: Meets requirements of the Americans with Disabilities Act.
- => RoHS: Meets requirements of EU RoHS Directive 2002/95/EC.
|
